Pushback Rack in Phoenix, AZ
Third-party logistics providers along the Loop 303 corridor rarely get to choose their inventory. One client ships a few SKUs by the truckload; the next brings hundreds of small lines. A push back racking system handles the deep, repetitive part of that mix.

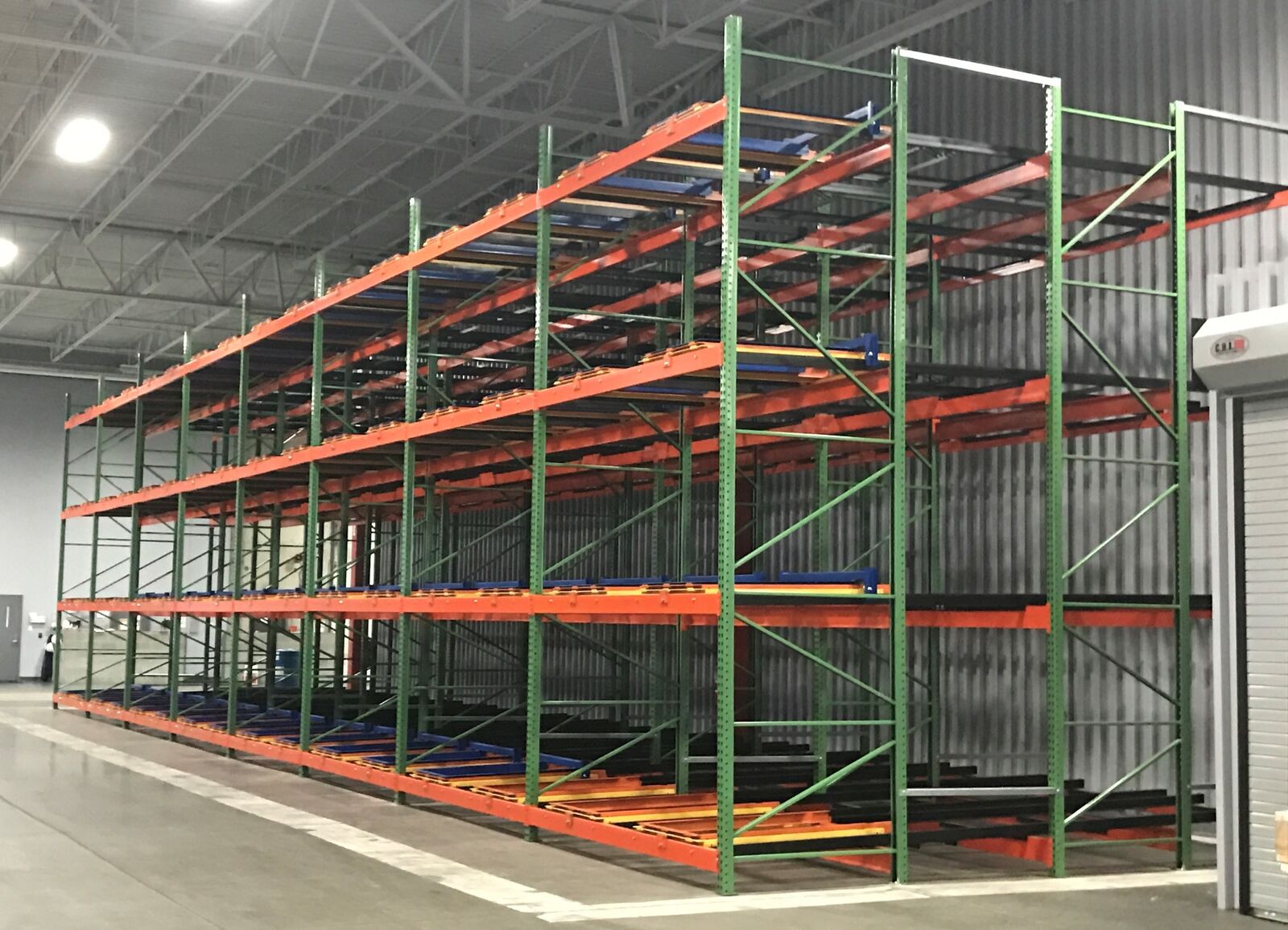

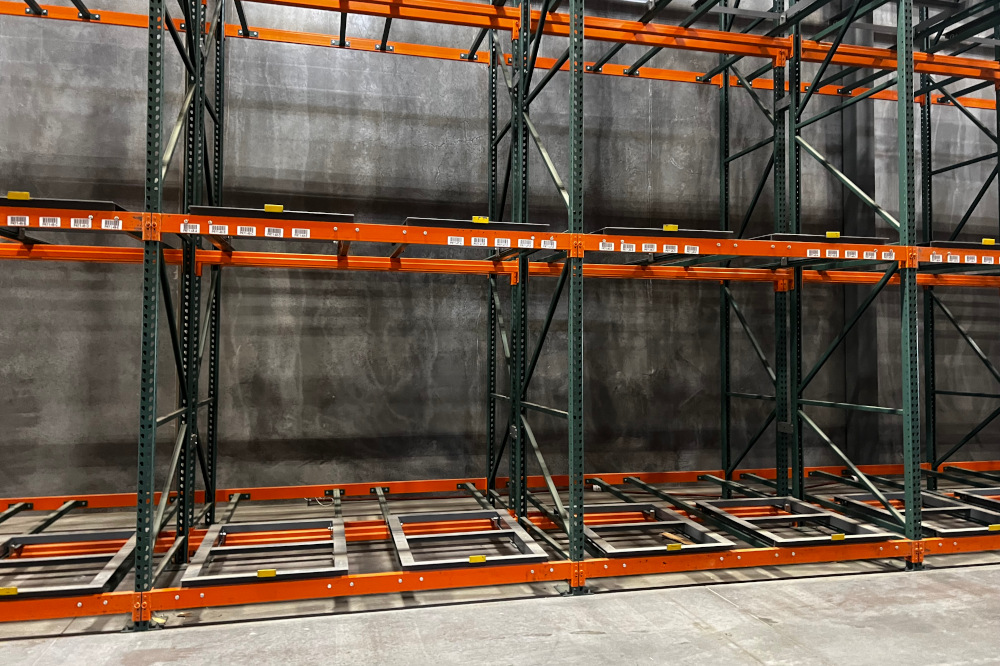

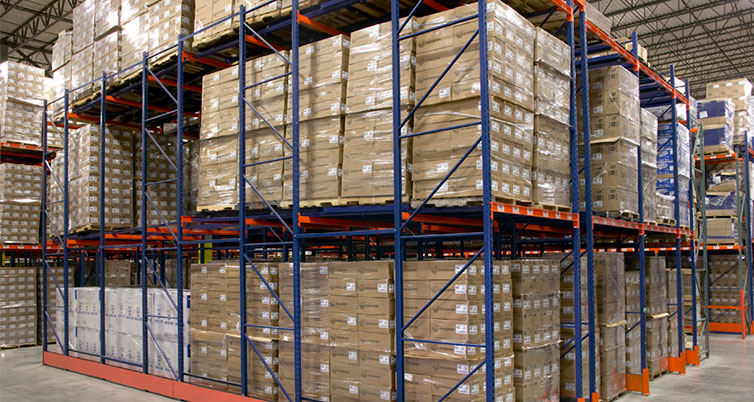

Pallets load from the aisle and ride back on nested carts, two to six deep. The next pallet in pushes the last one back, and picking pulls the front pallet forward. You give up one aisle in several and keep a pick face on every lane.
Where Pushback Pays Off in the Valley
Park 303-type campuses in Goodyear, Glendale, Peoria and Surprise serve retailers and online sellers shipping across the Southwest. Many hold several pallets of each fast-moving consumer item, which is exactly the profile pushback pallet racking was built for.
The same logic applies to 3PL space near the BNSF Phoenix intermodal facility in Glendale, where inbound containers bring repeat pallets of the same product.
Weights, Lane Depth and Clear Height
Cart capacity limits the pallet you can store, so we start with your heaviest loaded pallet and its footprint. Lanes deeper than four pallets work best with uniform, sturdy pallets; damaged bottom boards cause hang-ups.
In a 36-foot clear tilt-wall building, pushback can stack several lanes high. Each level adds carts and rails, so we show the cost of every added level next to the positions it gains.
Forklift Fit and Aisle Planning
Drivers load pushback straight on, so any truck that handles selective rack can usually work it. Reach trucks and counterbalance units still need different aisle widths, and that choice shapes how many lanes fit between columns.
We size lane depth around the column grid so you are not left with an odd half-lane against a wall.
Review, Install Timing and Changes Later
For 3PLs in Glendale, Goodyear, Peoria and Surprise, we set install dates around client receiving windows and confirm beam capacities and cart loads on the drawing first. Our team handles the permit side for you.
Summer installs start at first light in uncooled buildings, with staging planned so carts and rails are not sitting in the afternoon heat. If your client mix changes, lanes can be converted or combined with selective bays in the same row.
Get a Pushback Rack Quote
Send the basics and we will come back with a layout and pricing. Prefer to talk? Call (602) 844-7035.
What's Included:
- Free warehouse consultation
- CAD layout drawings
- Itemized project quote
- Rack type recommendations
- Installation timeline
Pushback Rack Questions We Hear Most
Other Rack Systems We Supply
Pallet Rack
Every pallet reachable, every time. The baseline we size everything else against.
Pallet Flow Rack
Load one side, pick the other, and let gravity enforce first in, first out.
Drive-In Rack
Storage aisles become deep pallet lanes, with lift equipment entering the structure to place each load.
Cantilever Rack
Arms with nothing in front of them, built for lumber, pipe, and anything a pallet can't hold.
Carton Flow Rack
Cases advance to the picker instead of the picker hunting for cases.
